I live in Jersey City and many of my days start with a short commute into New York City on the PATH train. On weekdays, trains run frequently, but for weekend visits to Fat Cat Fab Lab or Vital, trains come every 12 minutes. Waiting 6 minutes on average isn’t bad, but not knowing how long I’ll wait bugs me.

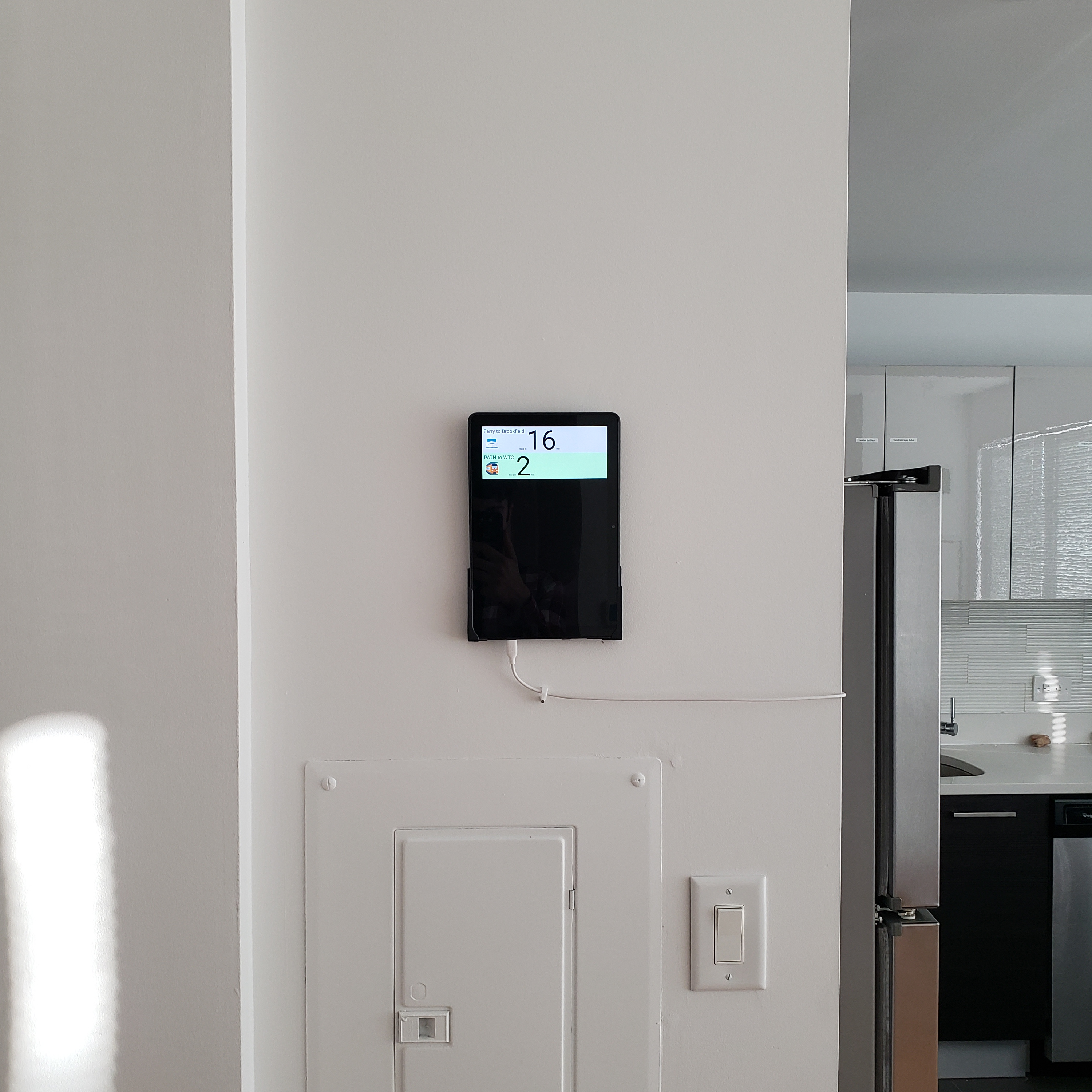

To make my life a little easier, I built a web app that runs on a tablet by my front door that tells me when I should leave my apartment to catch the next train. This is what it looks like:
I’ve been using it for 3 months and I’m really happy with it. It feels great to walk at a leisurely pace to the station and show up 2 minutes before the train leaves, every time. Instead of waiting in a cold station I can wait in my warm apartment.
2 minutes before departure, train waiting in station
I used an Amazon Fire HD 10 tablet. This tablet is cheap ($150 at time of writing, but frequently on sale for $110 or less) and has a large-ish screen, which is important because I need to be able to read the screen from 10 meters away. The web app isn’t demanding and the system is always plugged in, so specs like processor and battery life don’t matter. The app runs full-time so the lockscreen ads aren’t an annoyance.
To mount it on the wall, I used the Dockem Koala Wall Mount 2.0, which worked well. It can be screwed to the wall or adhered using Command Strips; I chose to use these drywall anchors because Command Strips sometimes fall off after several months of use.

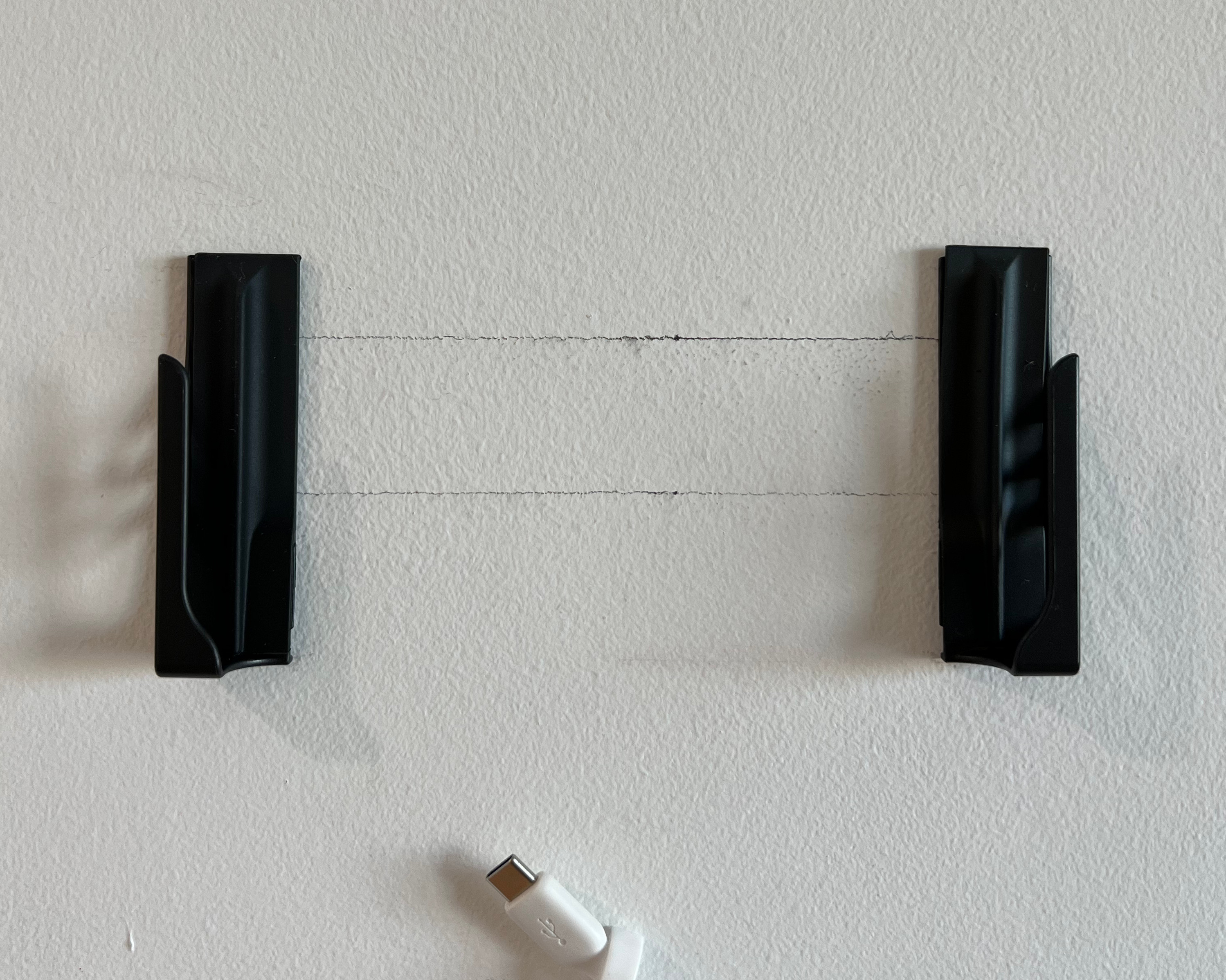

mount with tablet removed
I routed the power cable using these Monoprice cable clips.
The transit panel runs a simple web app without any frameworks. The source code is here, with most of the logic in main.js. I’m not a JS wizard; don’t judge my code 😅 (but constructive comments are appreciated! Send me a PR).

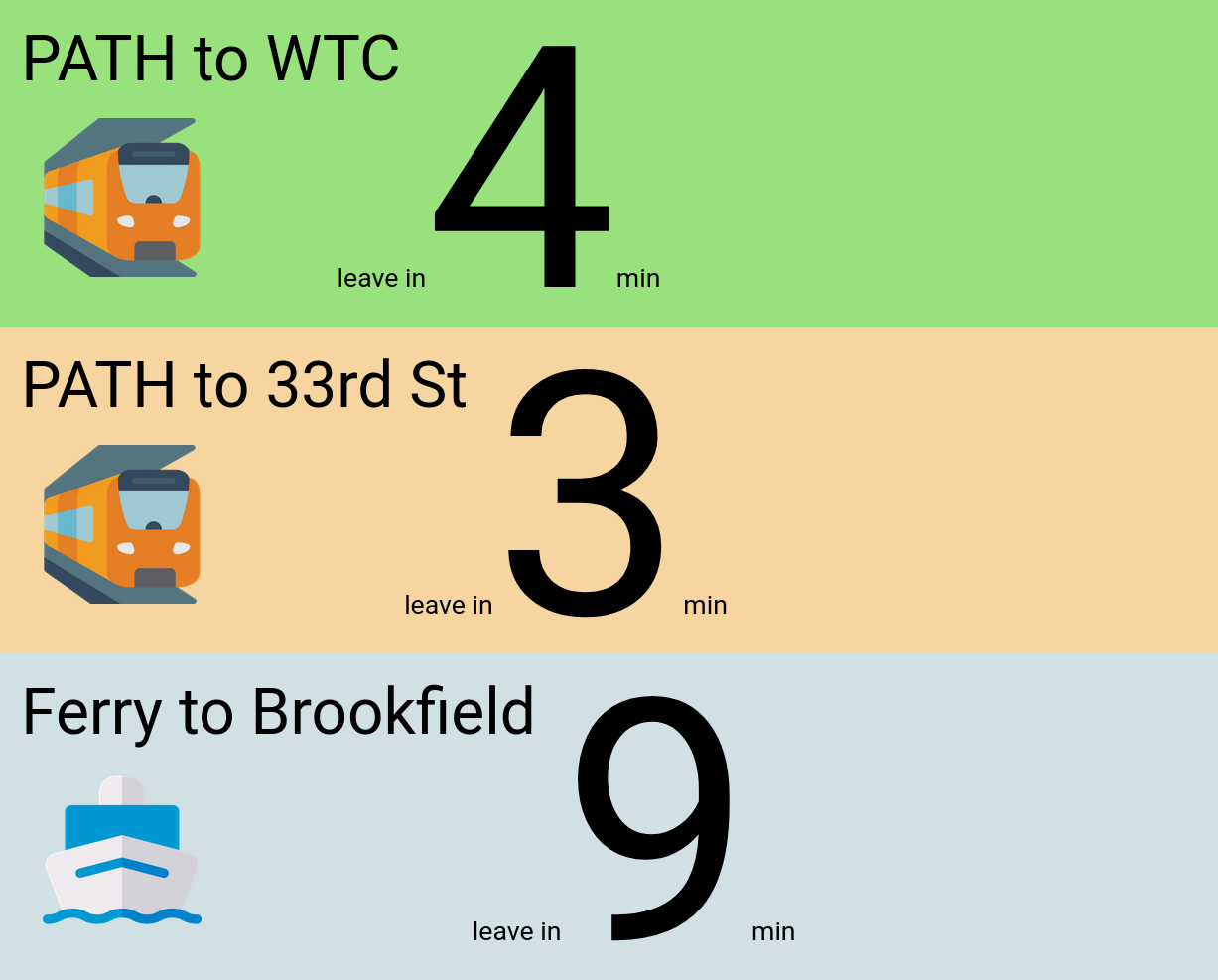

currently 3 transit options are supported
Luckily, a true internet hero named Matthew Razza runs a web service that exposes the PATH data in a JSON HTTPS API. A second problem however is that the live PATH data doesn’t have a long enough time horizon. I take 10 minutes to walk to the station, and oftentimes the only departures returned by the API are less than 10 minutes in the future. (This affects everyone, including people using the official website and app—if you work at PATH, please fix this!).
I could combine the approaches, using the live API and falling back to the schedule if there is no data, but for now the hardcoded schedule works well enough.
I spent a ton of time trying to center the numbers vertically in their rows (e.g. the 4 in “leave in 4 min”). I would tweak the CSS to center it in Firefox, but then I would open it in Chrome on the same computer and it would look different, and the tablet would be different from both.
I thus learned the hard way that if you want your app’s text to have a consistent appearance across platforms, you need to use a font from a font service like Google Fonts instead of relying on the browser’s built-in font library.
I used the Fennec browser from the F-Droid app store, which is a reskin of Firefox for Android. This was the only browser I found that behaved correctly when full-screened (hiding both the top and bottom system UI bars).
I’ve kept the tablet running continuously for about 4 months. Once or twice in that period, it’s gotten into a bad state and needed a reboot. I’ve noticed no issues with burn-in on the screen. I’m hoping to get several years of use before the hardware needs replacement.
At some point (maybe when it’s warmer) I’m planning to add a row showing bike availability at the nearest Citi Bike station. Citi Bike has a delightful and easy-to-use REST API. Speaking of weather, I’m also planning to add a row that shows the weather and current time.
